A small relay computer using modern relays.

I have slowly been working on a relay computer. It uses modern, small, relays and will have
a paper tape I/O syetem. There will also be a numeric display and a simple graphic display.
The CPU has an 8 bit data / 16 bit address bus much like a Z80 processor. It's going to have a
full front panel allowing access to most functions. I still have a very long way to go.

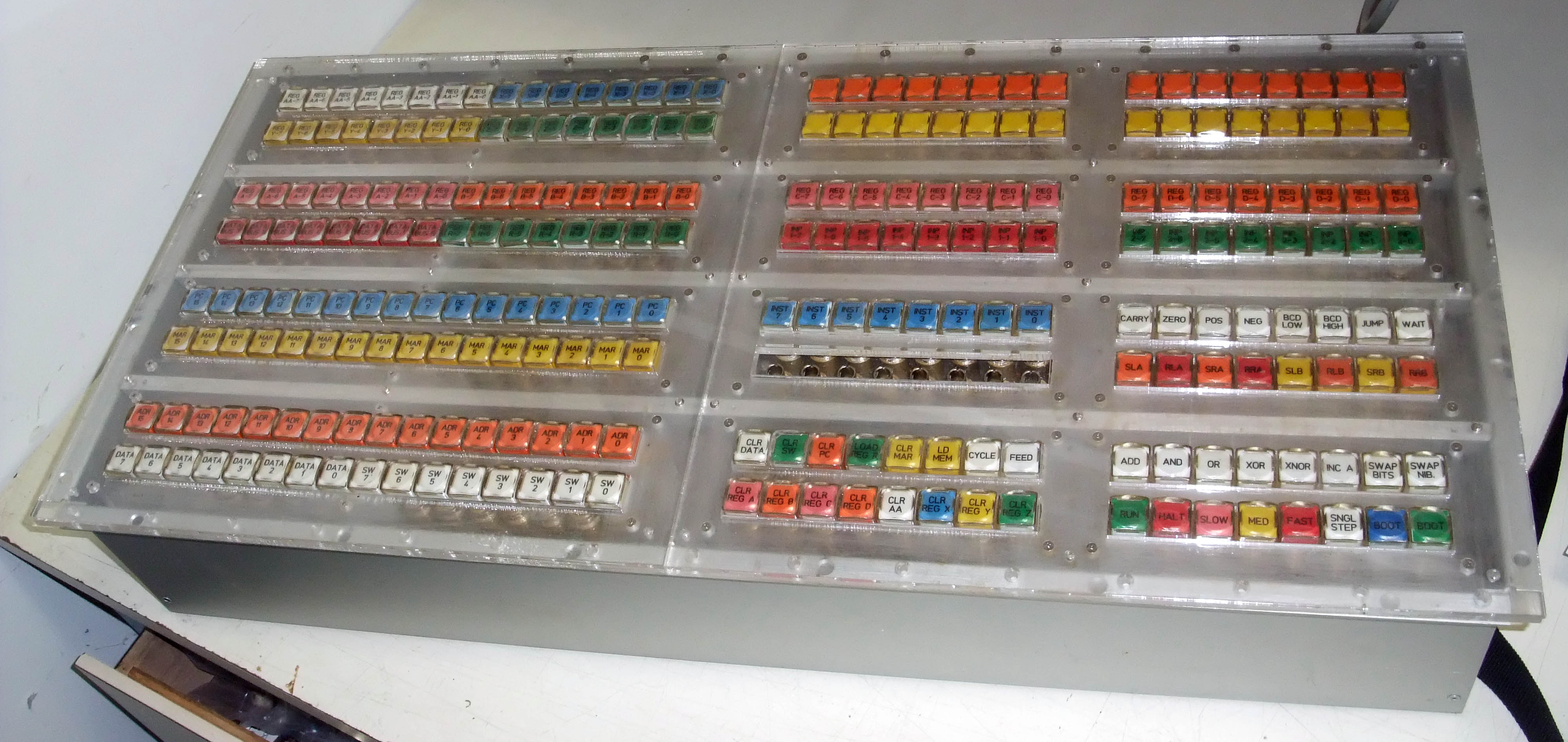

Control panel. A whole bunch of illuminated switches, hand wired.

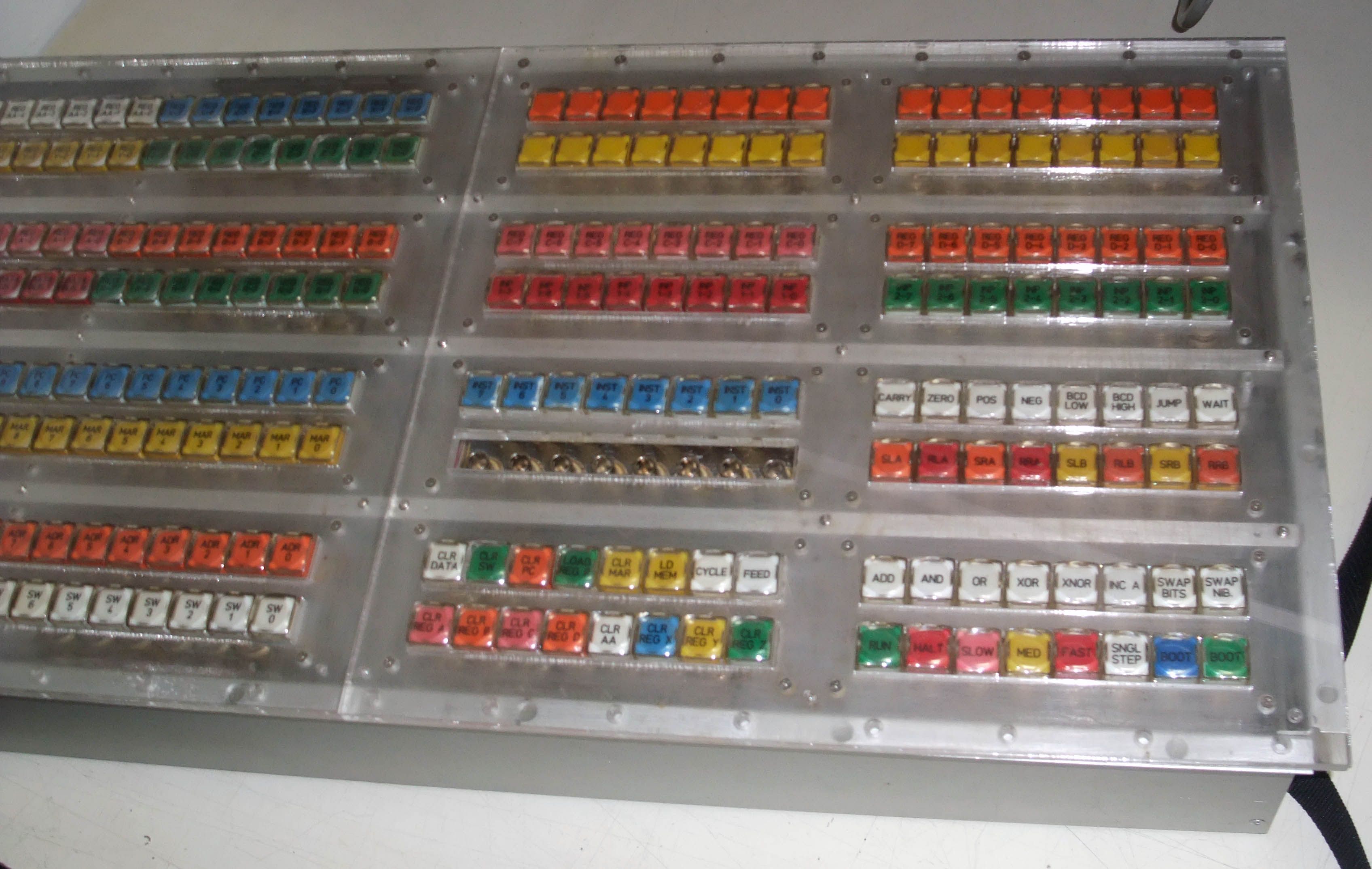

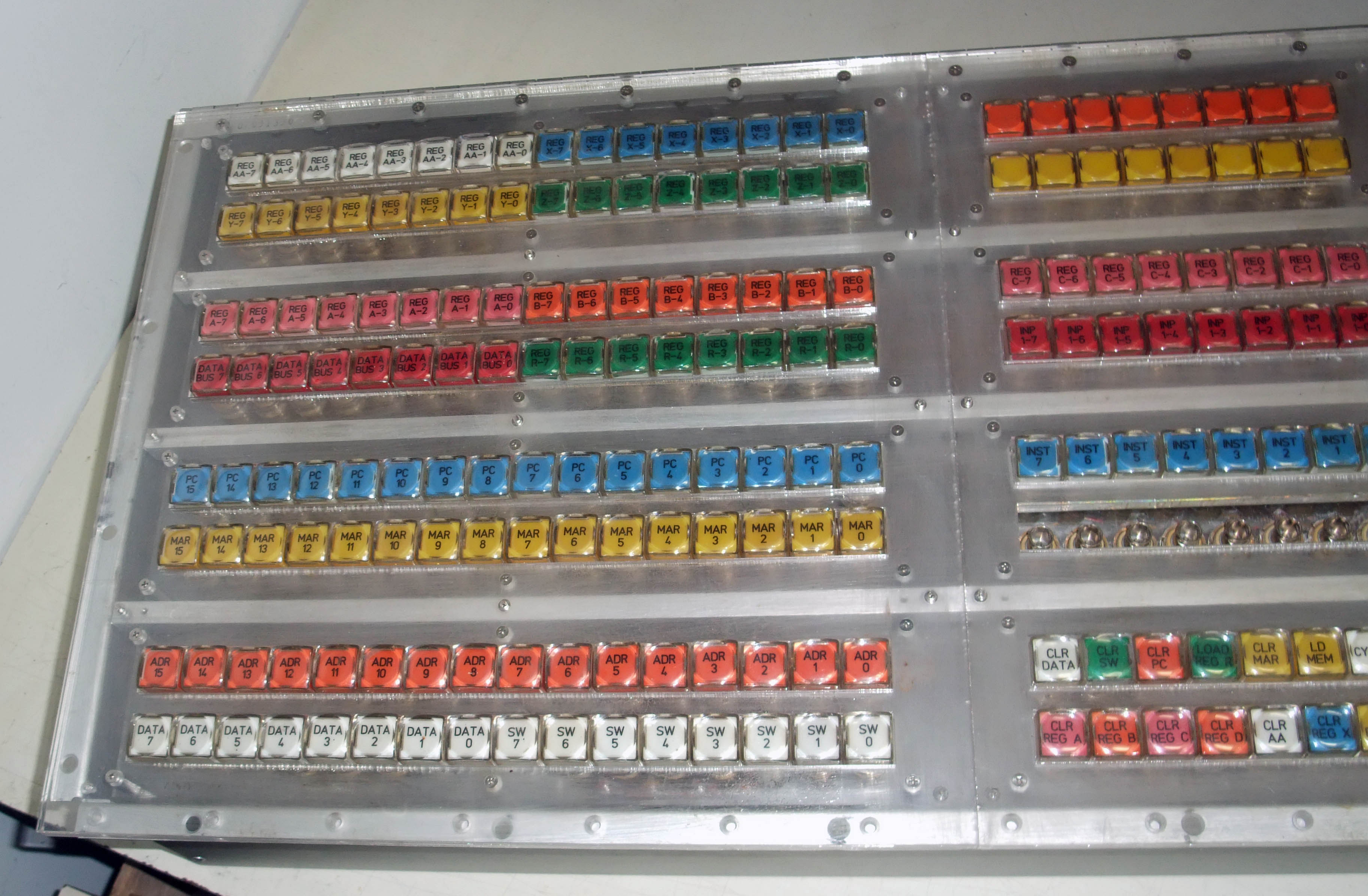

Full front panel. Right side. Left side.
Medium sized image Medium sized image Medium sized image
Large image Large image Large image

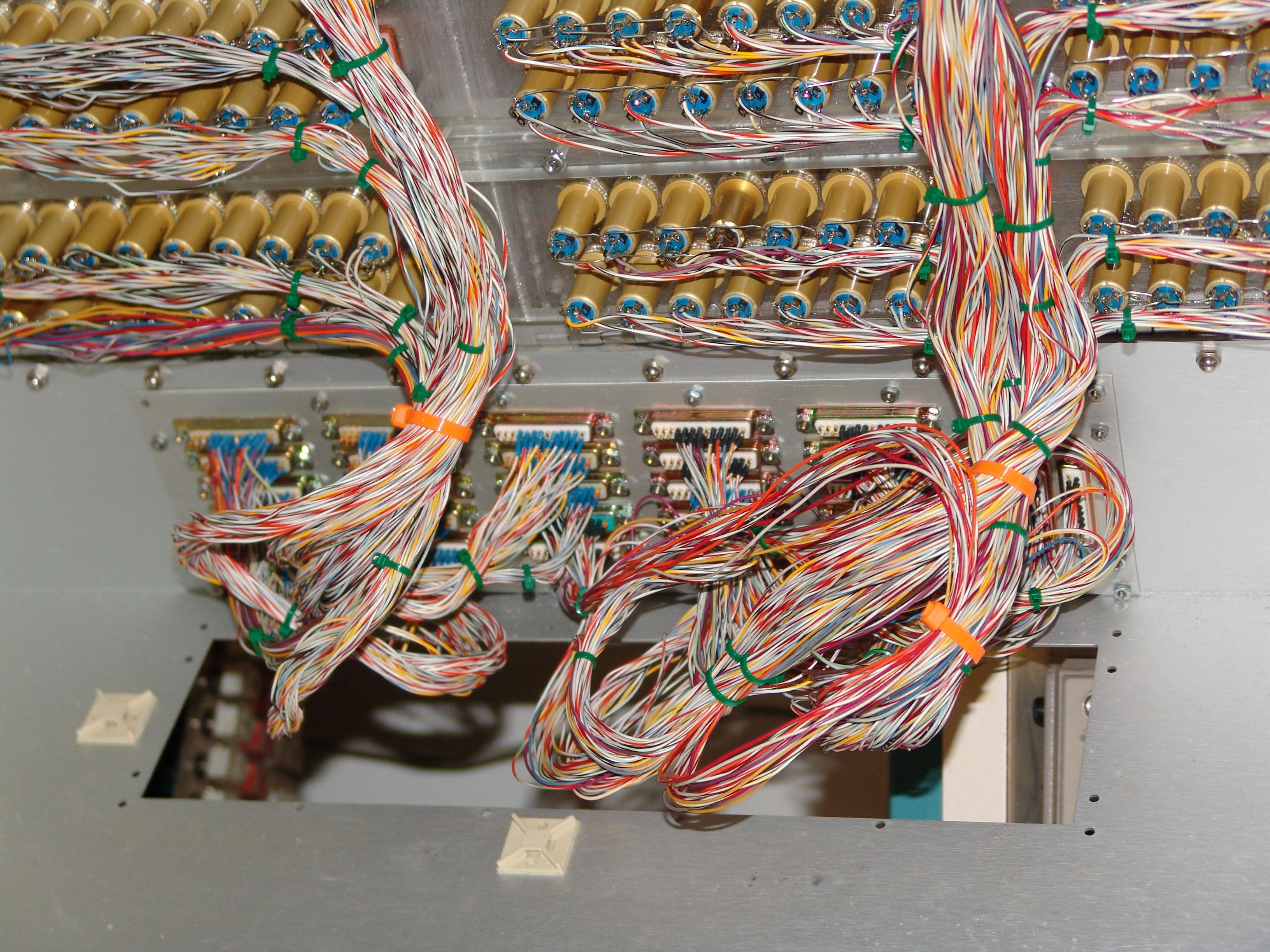

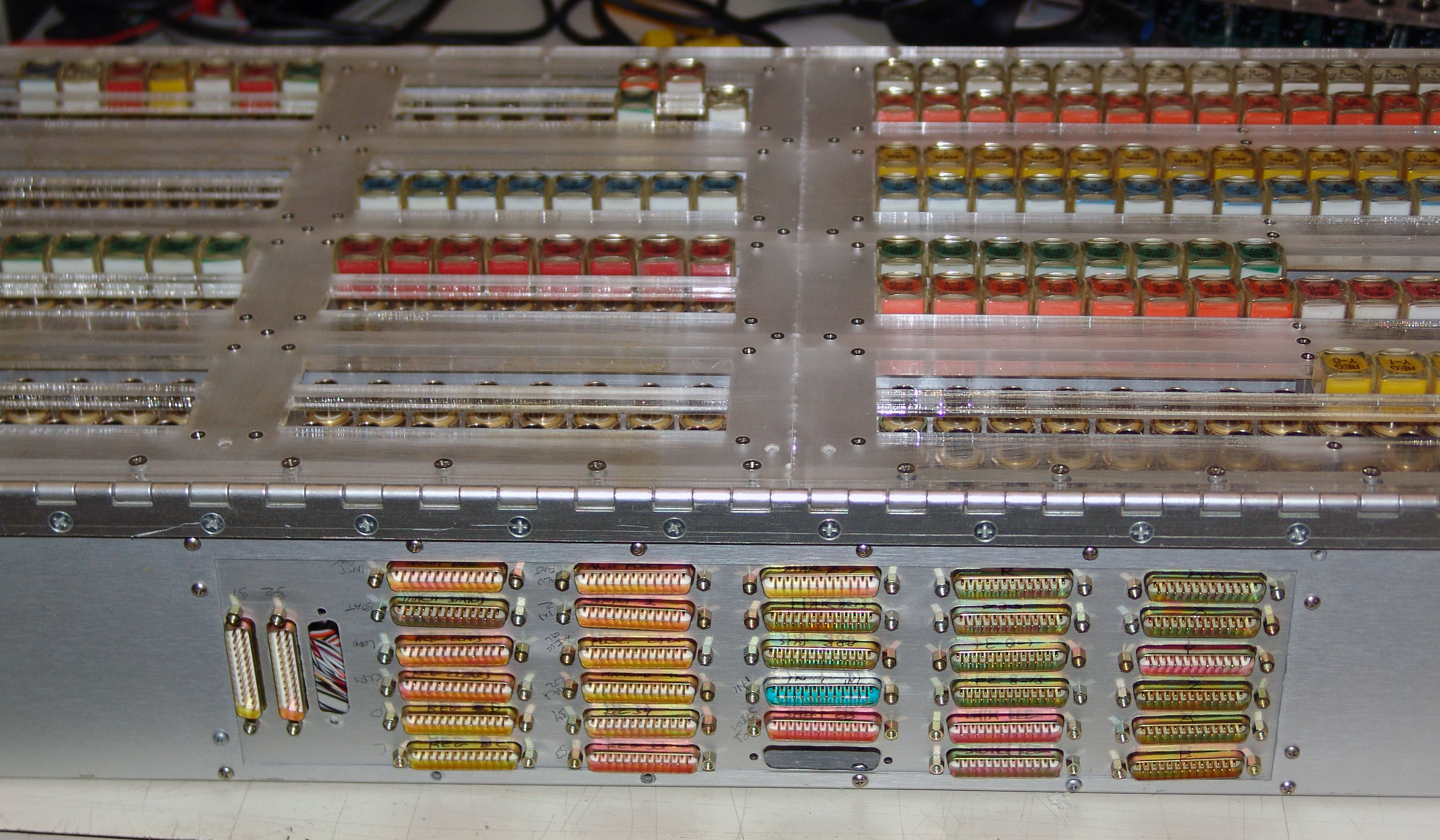

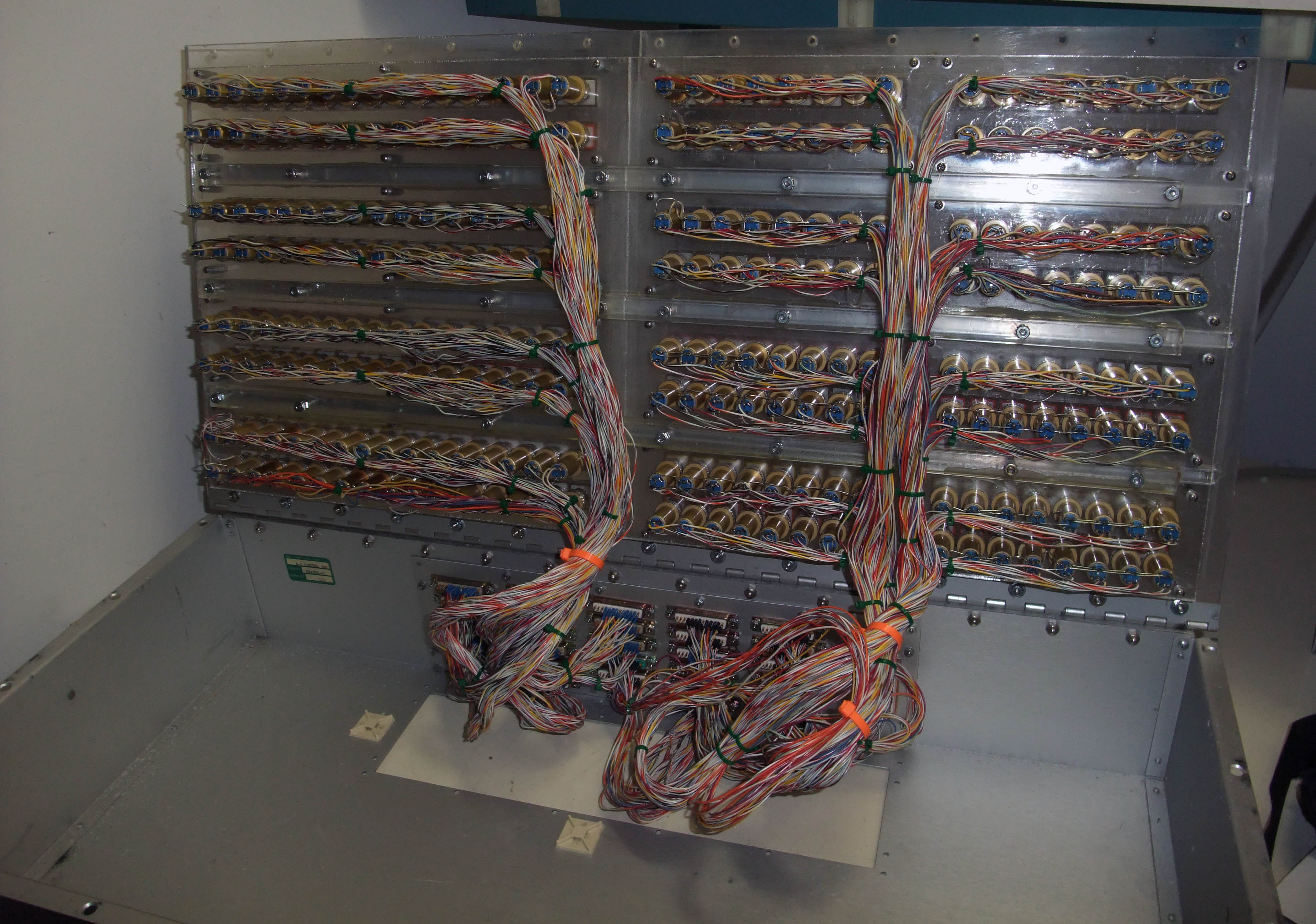

Insides. Wiring. Connectors.
Medium sized image Medium sized image Medium sized image
Large image Large image Large image

Circuit boards.

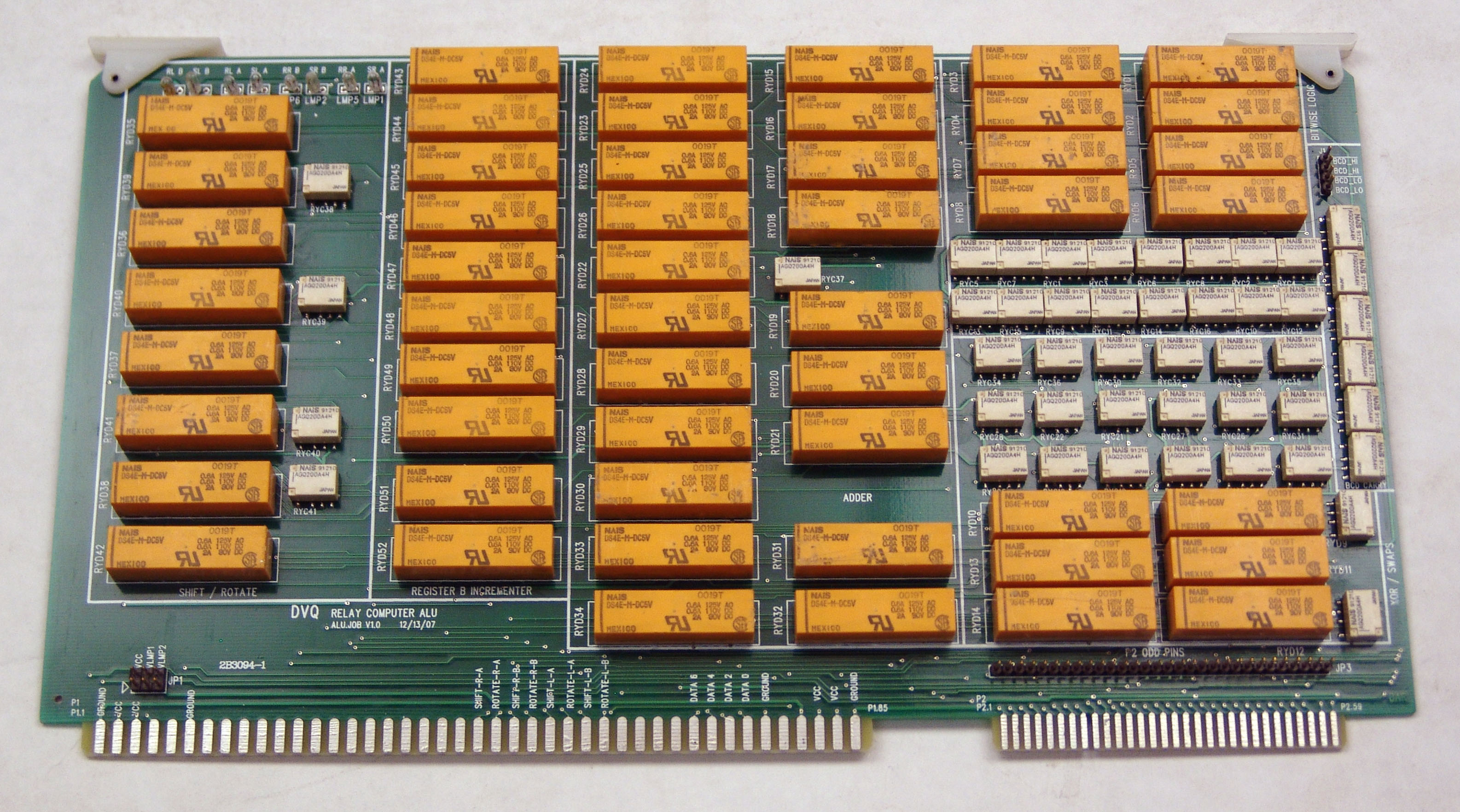

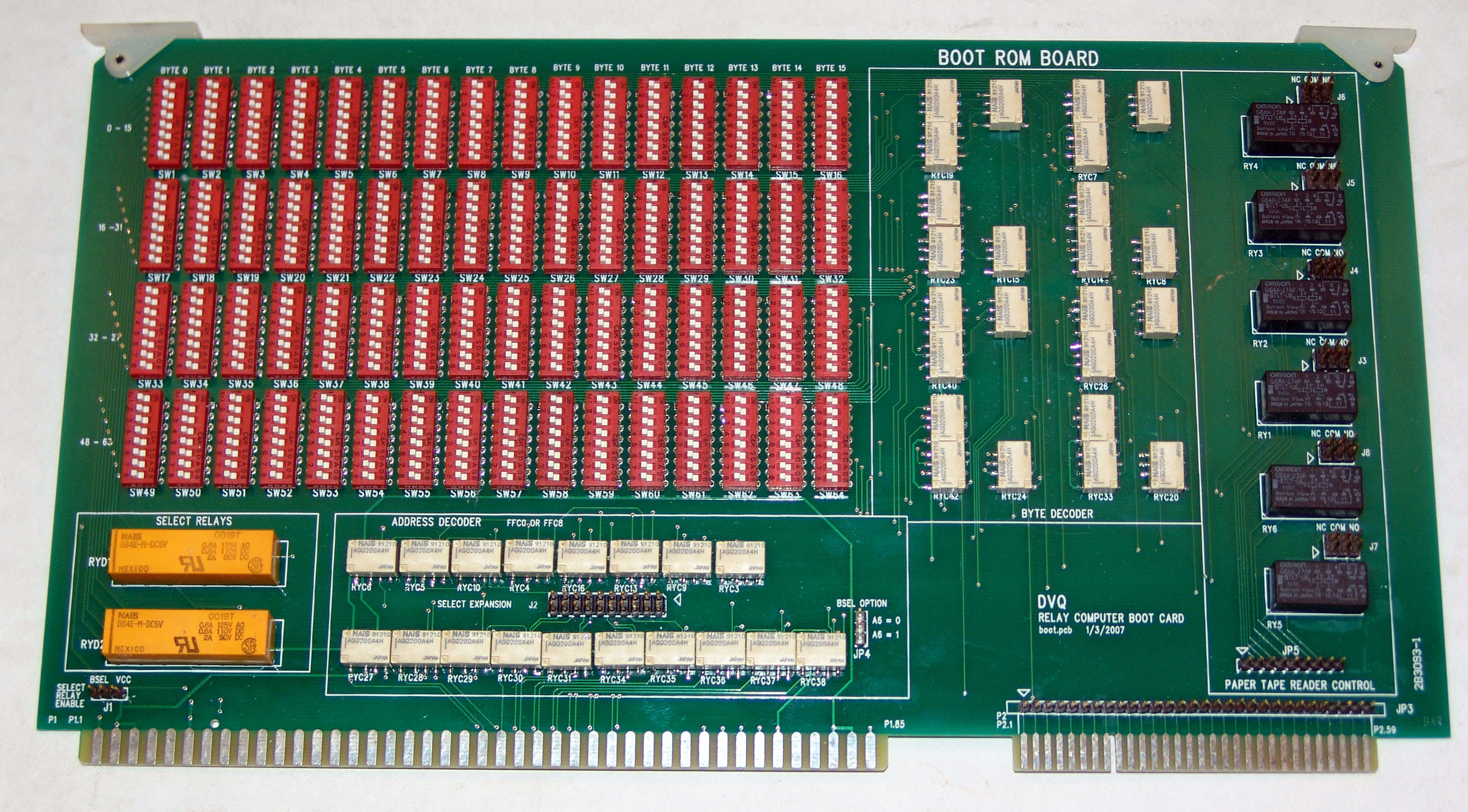

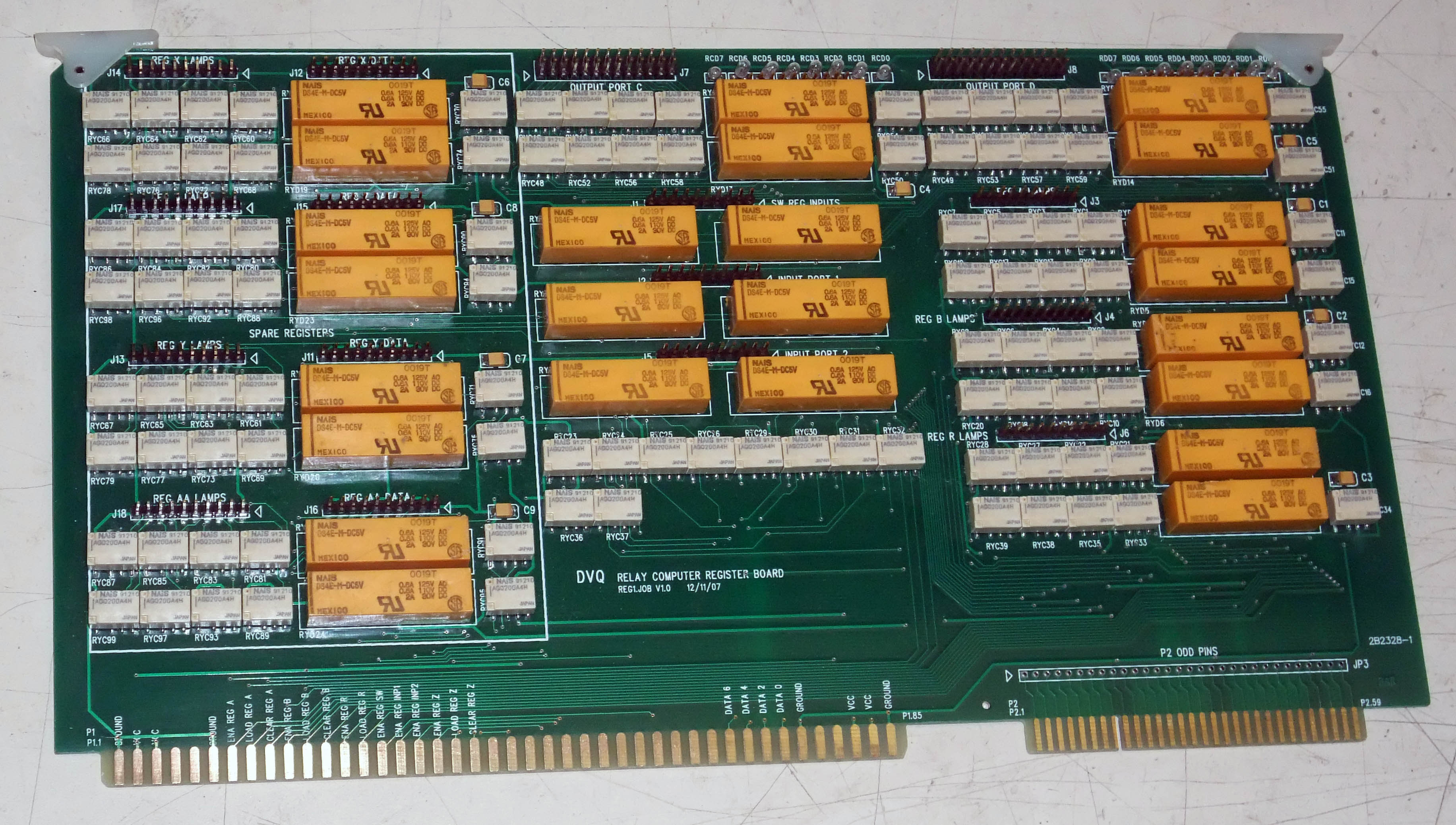

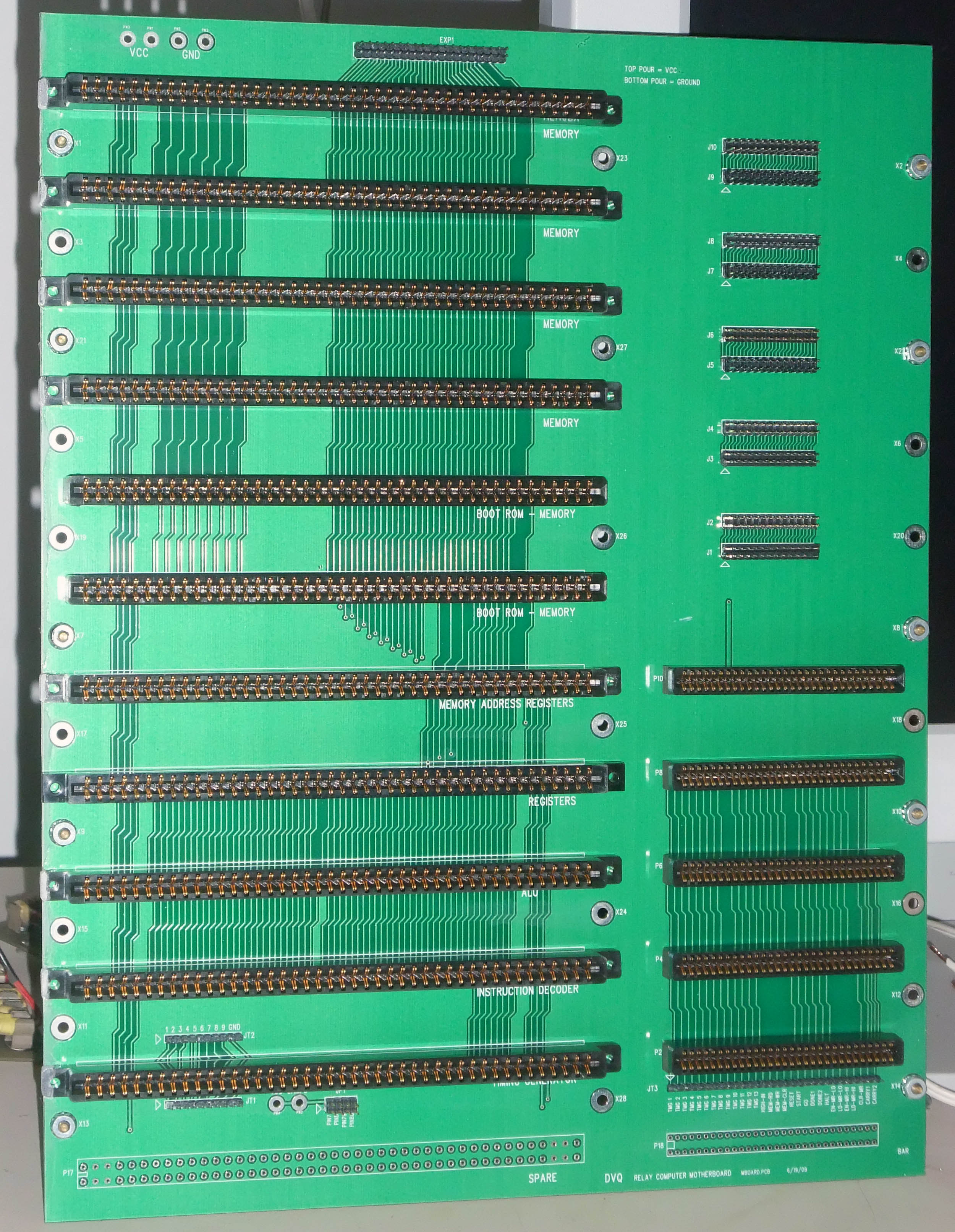

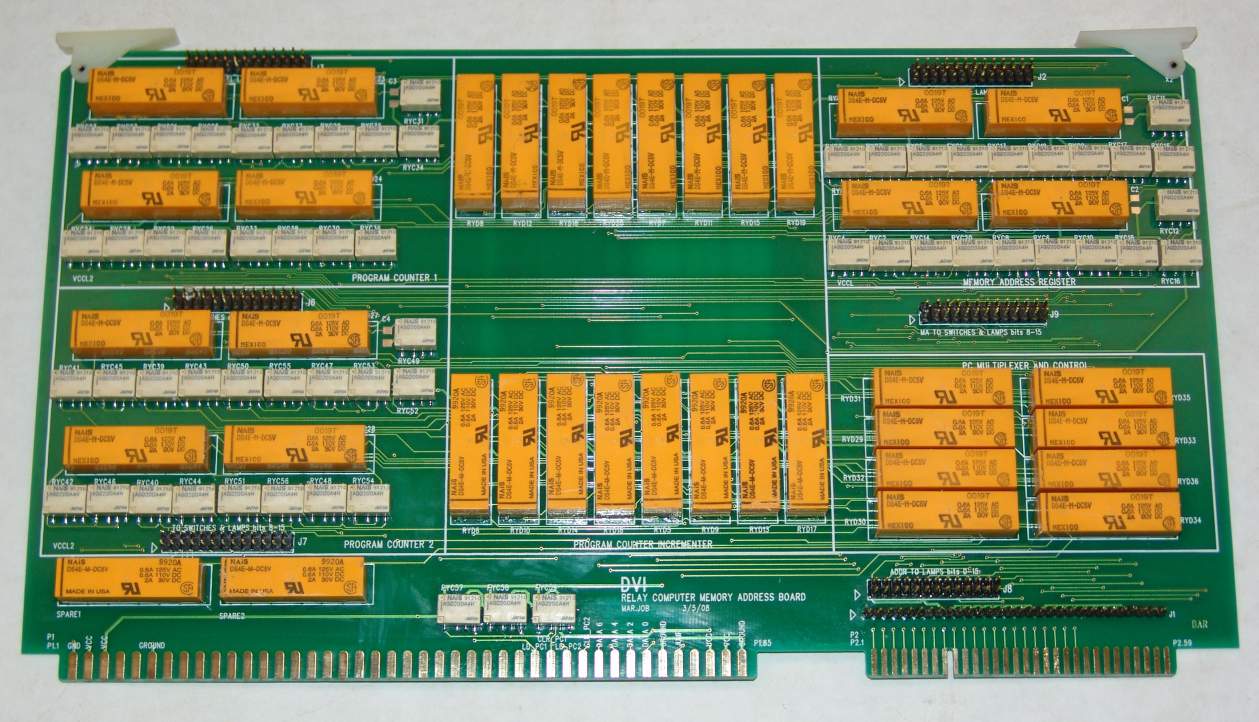

ALU board. Registers. Memory address registers. ROM boot board. Motherboard.
Medium sized image Medium sized image Medium sized image Medium sized image Medium sized image
Large image Large image Large image Large image Large image

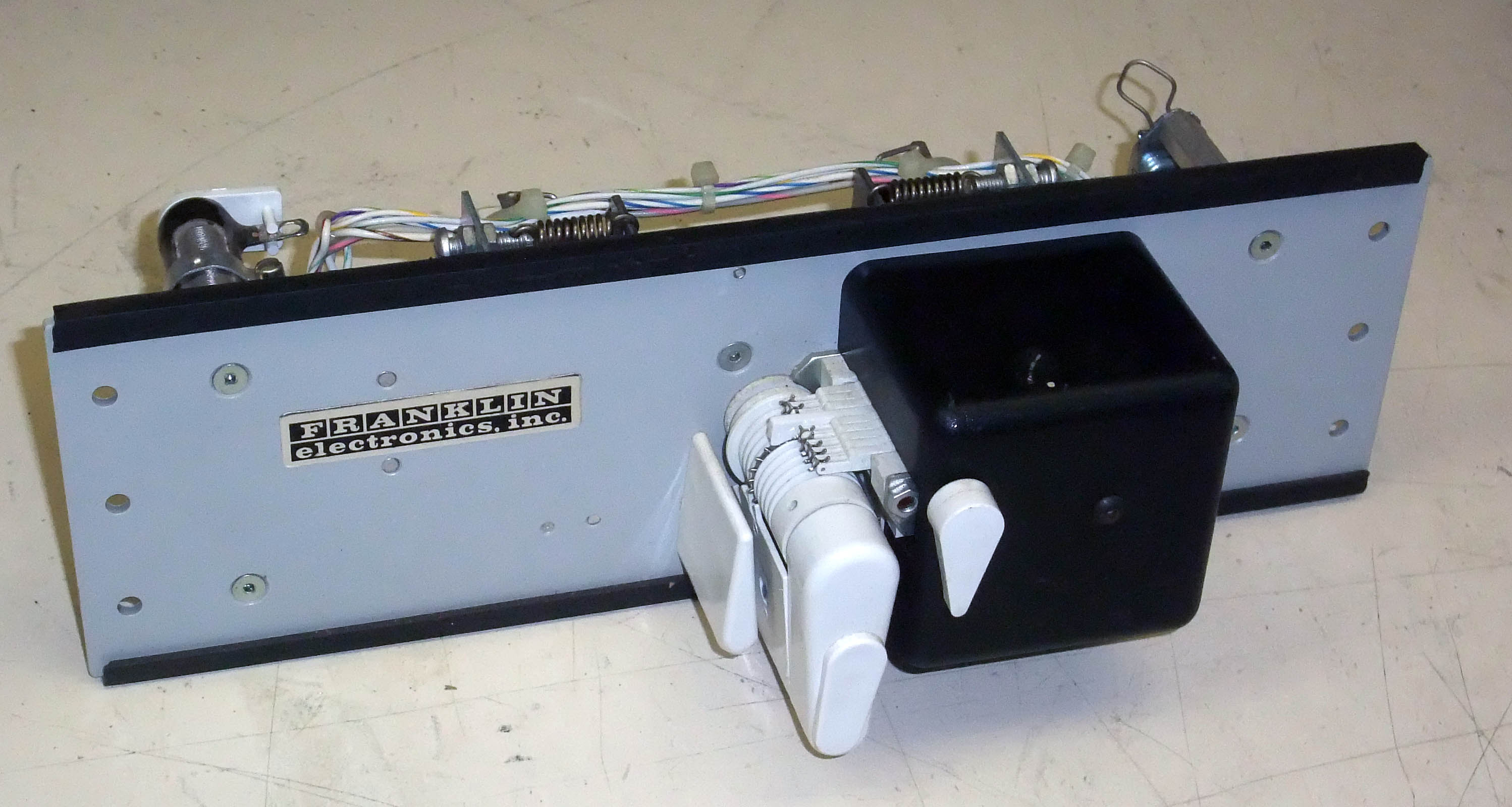

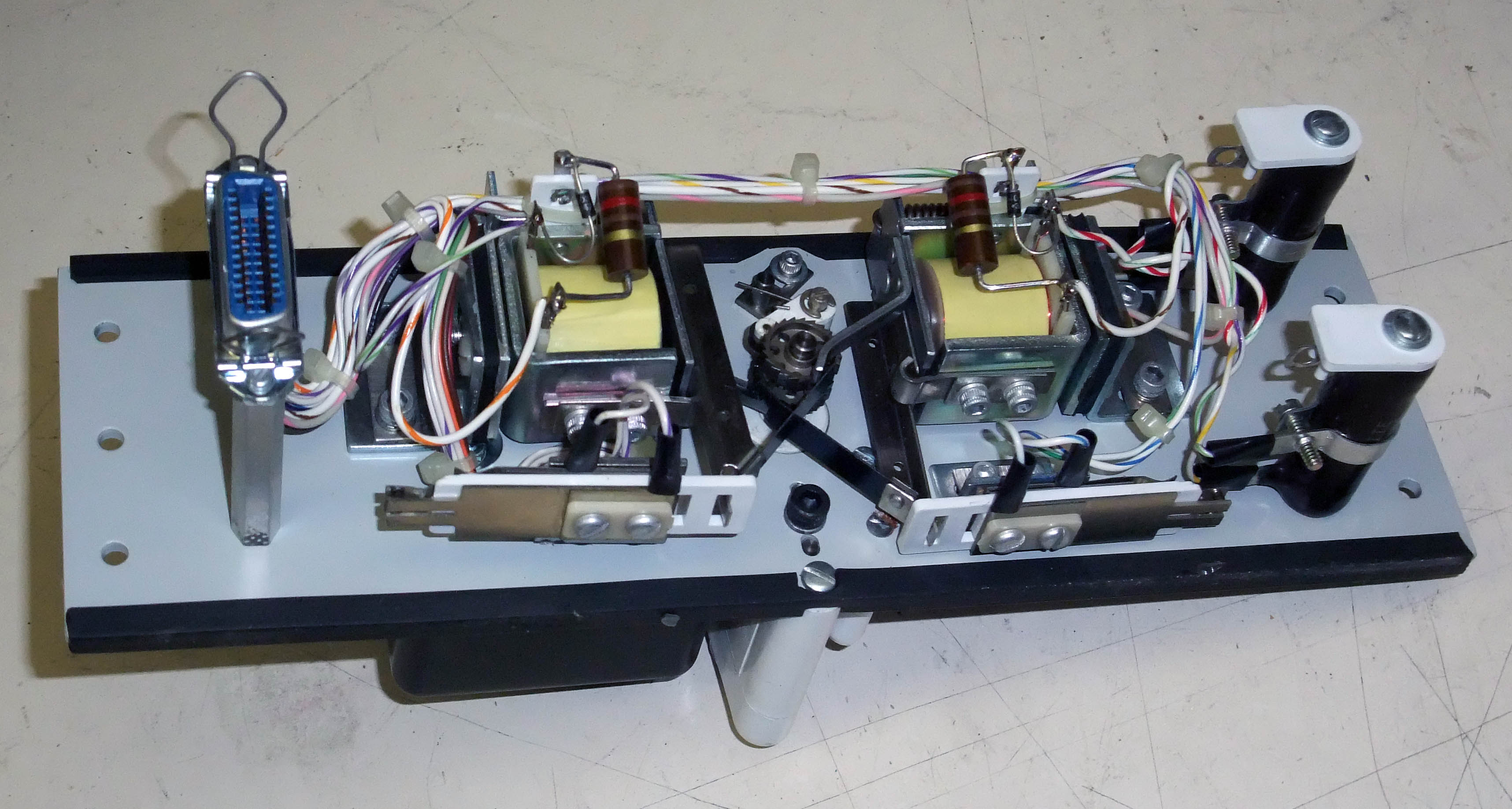

Paper tape reader. This is a fully mechanical reader using a "star wheel" and solenoids.

Front. Rear.
Medium sized image Medium sized image
Large image Large image

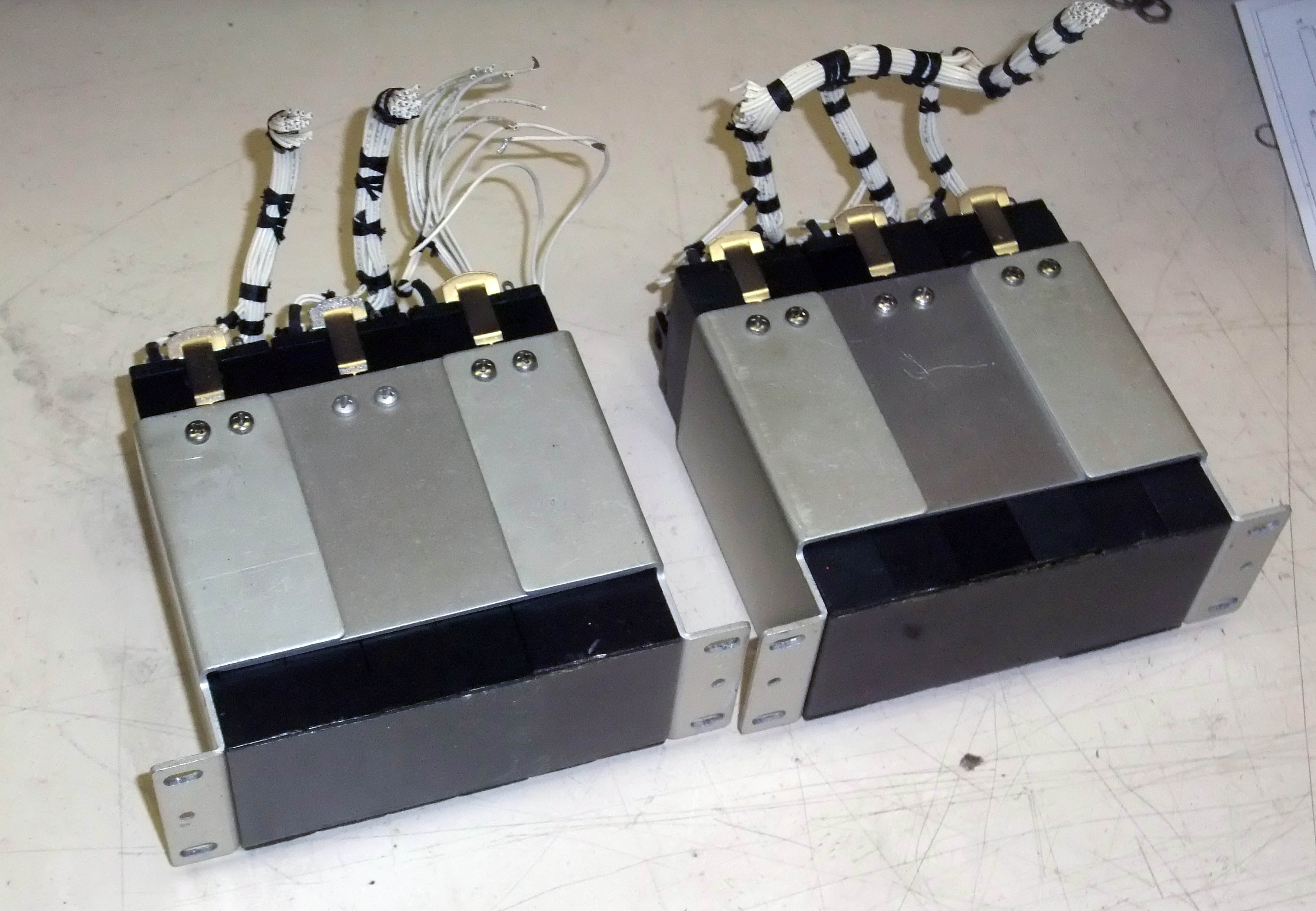

Decimal display units, light projection type.

These displays have 12 lamps and a film that has 0-9 and a left & right dot.
The digit on the film is projected onto the front plastic.
I'm building a relay based BCD decoder to drive 16 of these displays for numeric indication.

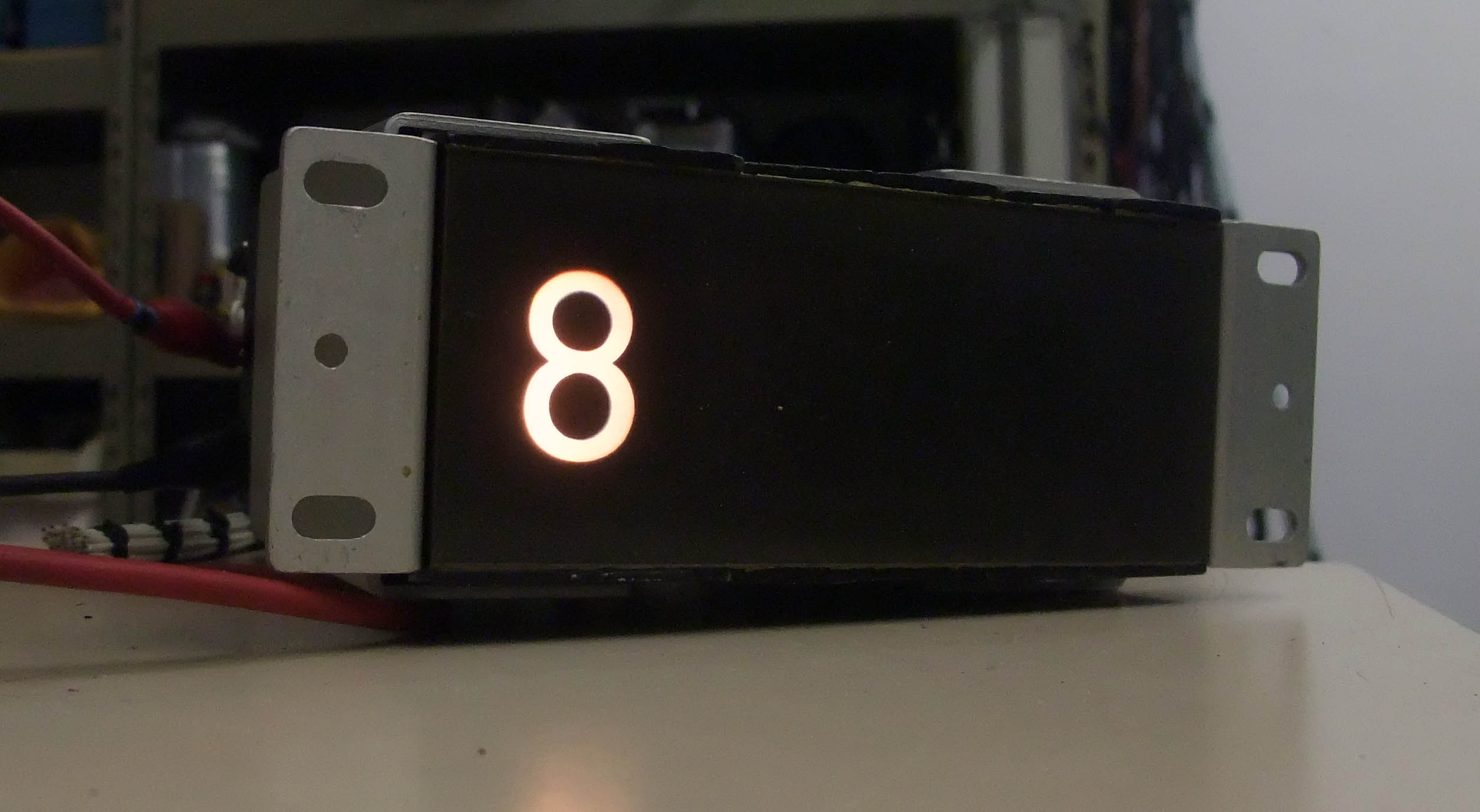

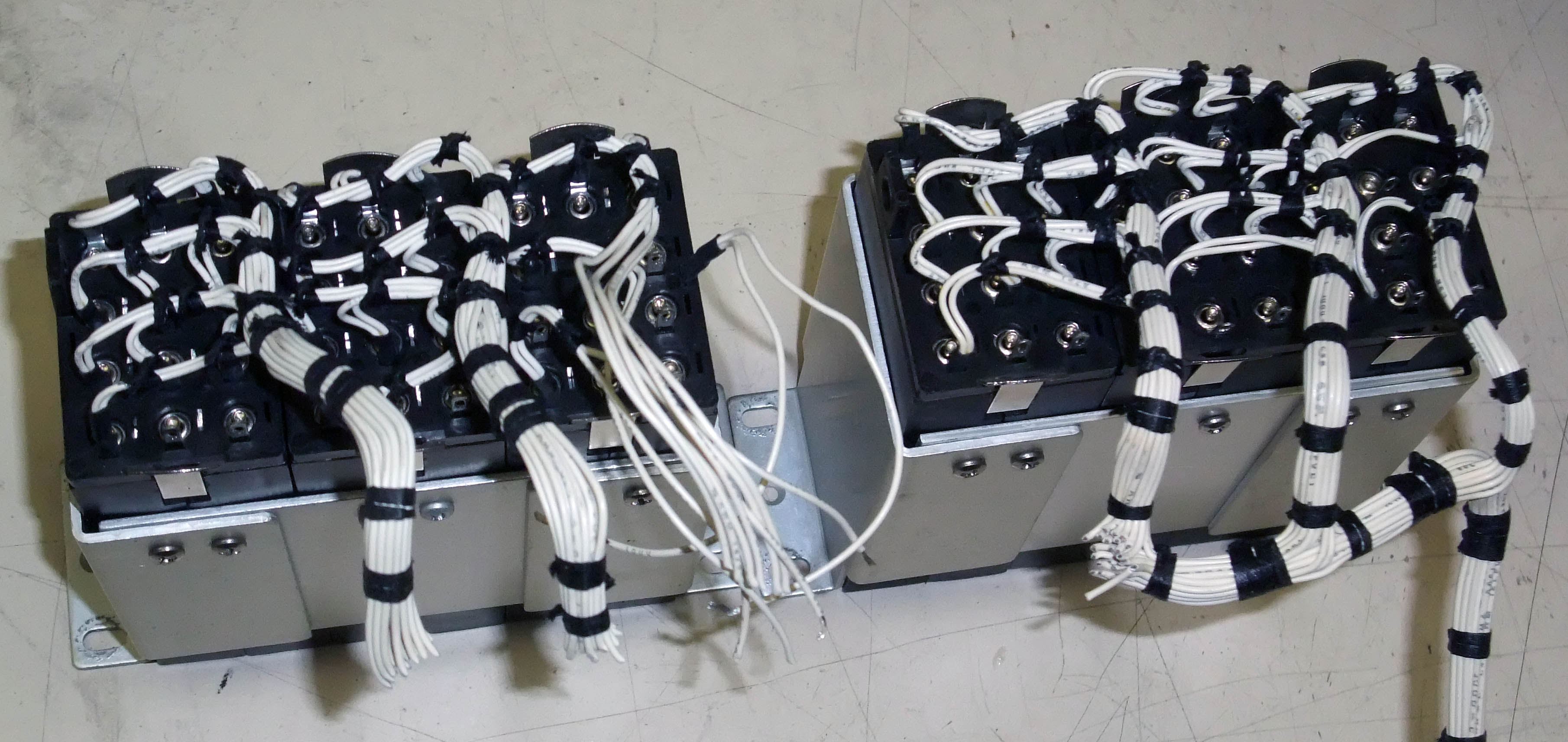

Six displays. Rear view. Projected digit.
Medium sized image Medium sized image Medium sized image
Large image Large image Large image

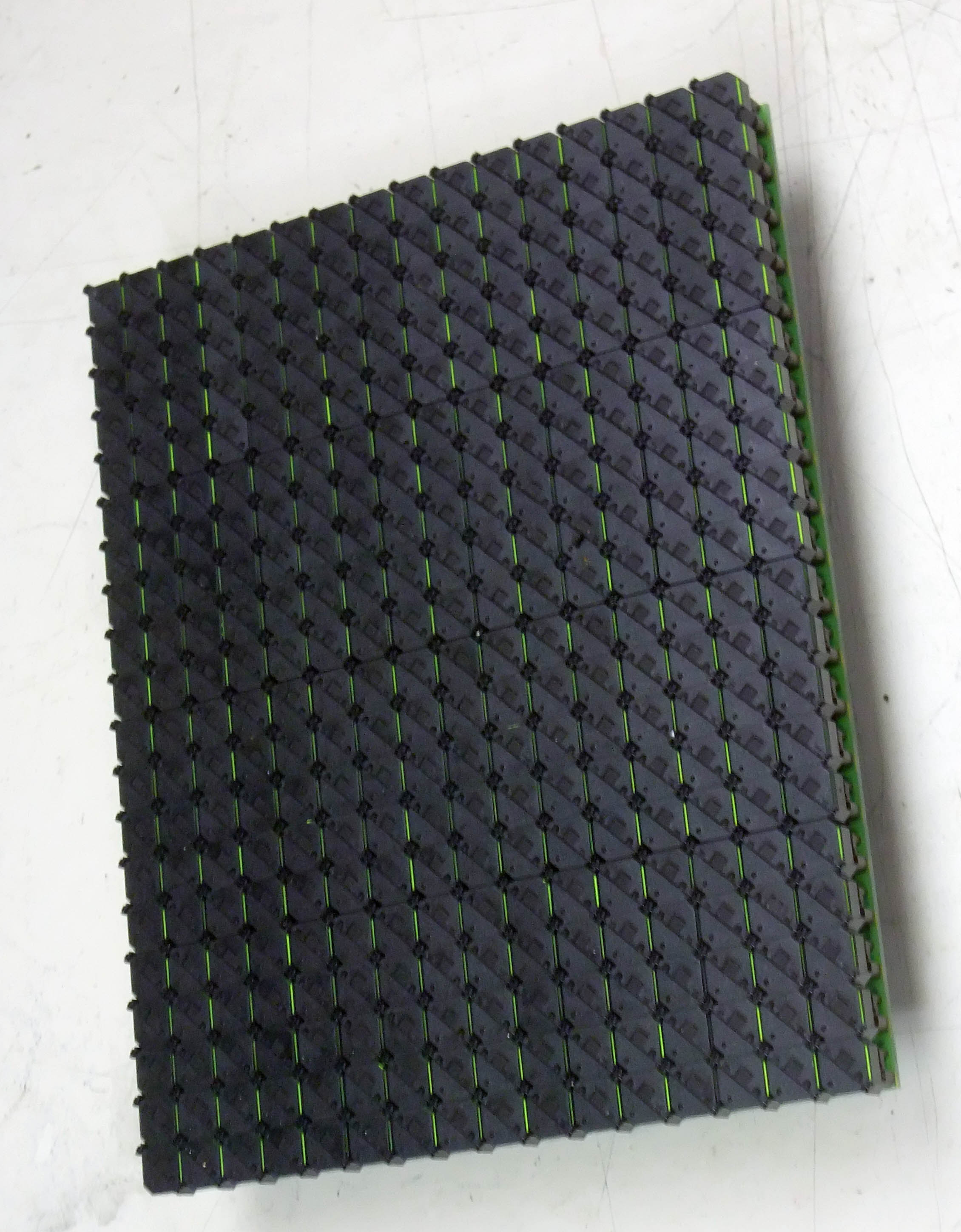

"Flip Disc" matrix display, 16 x 20.

I'm planning on using two of these displays wired up as an 80 byte memory.
They will show the contents of the memory directly, forming a crude graphics display.

Front. Rear.
